Ionic Contamination Testing for Automotive

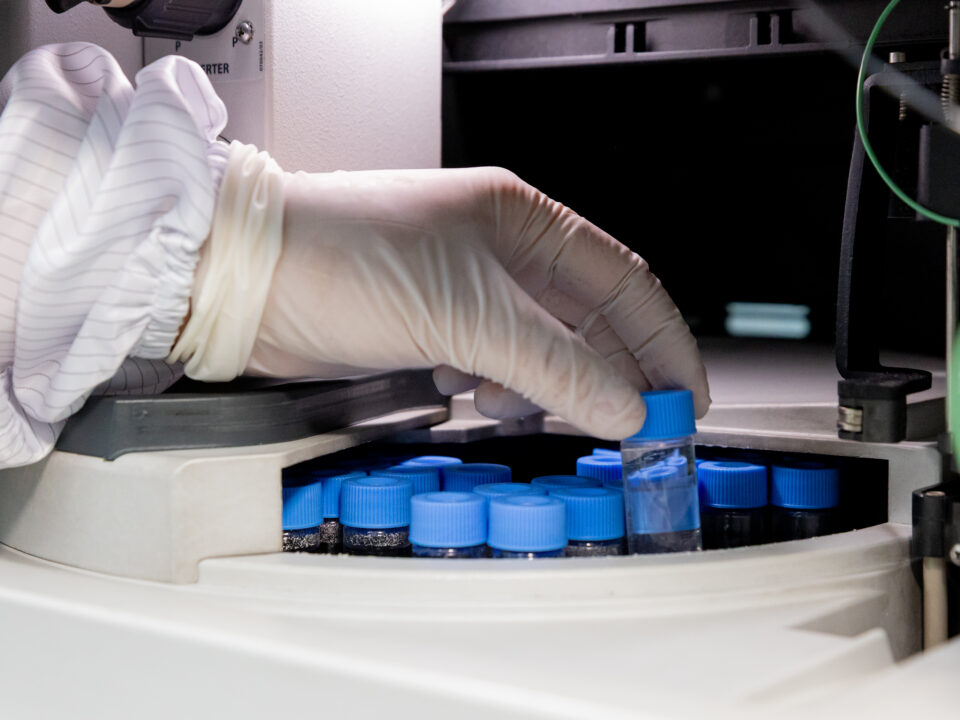

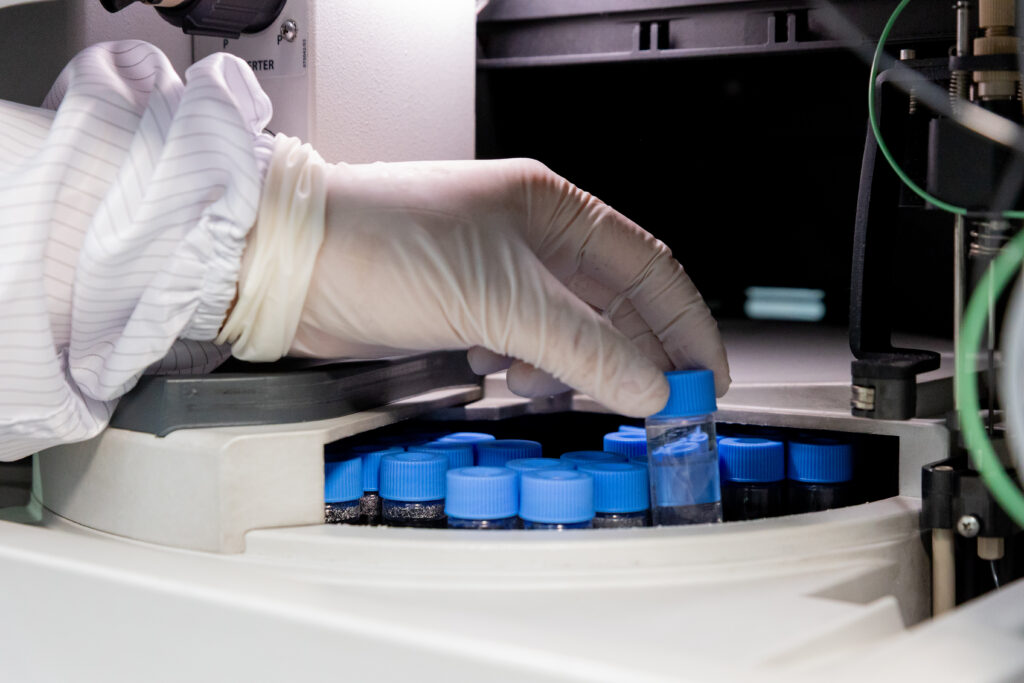

Ion Chromatography · Anion Test · IPC-TM-650 2.3.28 · Humidity and Tropical Climate · Automotive Electronics Reliability ISO/IEC 17025 Accredited Testing Where Applicable | Anion and Cation Analysis | Chemical and Electronics Testing Malaysia Automotive electronics assemblies are designed to operate reliably across a defined range of environmental conditions for the full service life of the vehicle. In markets with high ambient humidity and temperature, including Malaysia and the broader Southeast Asia region, the environmental stresses on automotive PCBs are more demanding than in temperate climates. Ionic contamination that might remain inert in a dry continental environment can become electrochemically active within months in a tropical climate. Ionic contamination testing by ion chromatography, commonly known as the anion test in electronics manufacturing, is the analytical method that identifies and quantifies the ionic residues on a PCB assembly before it is installed in a vehicle. It is the test that finds contamination invisible to optical inspection and undetectable by functional testing under dry conditions, before it causes failures in the field. Why Harsh Environments Increase Ionic Contamination Risk The mechanism by which ionic contamination causes PCB failures depends on moisture. Ionic residues on a PCB surface are typically insoluble and electrochemically inactive under dry conditions. When humidity rises above a threshold level, typically around 65 to 75 percent relative humidity depending on the specific ionic species, the residues absorb moisture and dissolve into a thin electrolytic film on the board surface. This film becomes conductive, creating leakage paths between adjacent conductors and, under applied voltage, driving electrochemical reactions that corrode conductors and grow metallic dendrites between circuit nodes. In Malaysia and across Southeast Asia, ambient relative humidity regularly exceeds 80 percent and can approach 90 percent or higher in coastal and low-lying areas. Vehicle interiors in these markets experience sustained humidity exposure even with air conditioning, particularly during parking periods and at night. The combination of high ambient humidity, temperature cycling between day and night, and the presence of ionic residues creates conditions where failures can develop significantly faster than in temperate climate markets. This is why automotive OEMs supplying vehicles to Southeast Asian markets, and the component manufacturers in Malaysia supplying their electronics assemblies, increasingly require ionic contamination testing as a standard qualification step, regardless of whether it was required for the same component being supplied to European or North American programmes. What Ionic Contamination Testing Measures Ionic contamination testing by ion chromatography analyses an extract from the PCB surface and identifies every ionic species present, quantifying each one individually. The test covers three categories of ionic species defined in IPC-TM-650 2.3.28. Anions Including fluoride, chloride, bromide, nitrite, nitrate, phosphate, and sulfate. Chloride is the most significant from a corrosion risk perspective, as it is highly mobile, highly soluble, and a known aggressive initiator of pitting corrosion and dendritic growth even at low concentrations. Cations  Including lithium, sodium, ammonium, potassium, magnesium, and calcium. Ammonium is the most diagnostically significant cation in electronics failure investigations, as elevated ammonium indicates the presence of incompletely deactivated no-clean flux activator residues that retain corrosion-promoting and hygroscopic properties. Weak organic acids (WOA)  Including acetate, formate, citrate, malate, succinate, methanesulfonate, and phthalate. WOA species are characteristic markers of flux chemistry residues, particularly from no-clean flux formulations, and their presence indicates residues that can promote leakage current and under-board corrosion in humid conditions. The result for each species is expressed in micrograms per square centimetre of board surface, and each result is compared against the acceptance limits defined in the applicable cleanliness specification. Typical Acceptance Limits for Automotive PCBs Ionic Species Typical Limit (μg/cm²) Notes Chloride (Cl⁻) 0.5 – 1.5 Most critical for corrosion risk Sulfate (SO₄²⁻) 1.5 – 3.0 Common from plating chemistries Sodium (Na⁺) 1.5 – 3.0 Indicates handling contamination Ammonium (NH₄⁺) 5.0 – 10.0 No-clean flux activator residue Total WOA 10.0 – 20.0 Flux chemistry marker   Limits vary by OEM specification. Tropical market programmes may apply tighter limits than global defaults. Tropical Climate Considerations for Malaysian Automotive Electronics Manufacturers For electronics manufacturers in Malaysia supplying automotive programmes, several factors specific to the regional environment are relevant to ionic contamination testing and specification. Higher humidity baseline means tighter effective limits.  A contamination level that falls within a standard acceptance limit defined for a temperate-market application may still drive failures in a tropical market application where board surfaces are exposed to higher average humidity. Automotive OEMs with specific tropical or Southeast Asian market programmes sometimes apply tighter ionic contamination limits than their global default specifications to account for the higher humidity baseline. No-clean flux residues are more of a concern.  No-clean flux formulations are widely used in electronics assembly because they eliminate the cleaning step. In dry environments, the residues from no-clean fluxes are generally benign. In high-humidity environments, certain no-clean flux residues, particularly those with elevated ammonium and WOA species, absorb moisture and become electrochemically active. IC analysis that includes WOA testing alongside standard anion and cation analysis provides a more complete picture of contamination risk for assemblies destined for tropical market use. Conformal coating cannot substitute for cleanliness.  Conformal coating is applied to many automotive PCBs to provide a barrier against environmental exposure. However, conformal coating applied over ionic contamination traps the residues beneath the coating in an environment where moisture can still migrate through or around the coating over time. The industry consensus and most OEM specifications require ionic contamination limits to be met before conformal coating application, not after. How the Test Is Performed Ionic contamination testing follows the extraction and analysis procedure defined in IPC-TM-650 2.3.28. The PCB assembly is placed in a clean vessel and covered with a defined volume of extraction solvent, a mixture of 75 percent isopropyl alcohol and 25 percent deionised water. The extraction is conducted at 80°C for one hour under agitation, dissolving ionic species from the board surface including flux residues not fully soluble in water alone. The extract is filtered and injected into the ion chromatography system. Anion and cation analysis are performed on separate chromatographic columns using the appropriate separation conditions for each ion class. WOA analysis uses a dedicated low-capacity column optimised for organic acid separation. Results are reported with individual species concentrations in micrograms per square centimetre alongside the applicable specification limits and pass or fail designation for each species. Sample Preparation and Turnaround Specimens should be sealed in clean polyethylene bags immediately after assembly Handle only with powder-free gloves to prevent handling contamination Complete extraction and analysis within four days of assembly to minimise ionic species migration or degradation Typical turnaround time: three to five working days from sample receipt, depending on species analysed and laboratory workload Ionic Contamination Testing in the Qualification Workflow For automotive electronics manufacturers in Malaysia, ionic contamination testing most commonly enters the production workflow at two points. Process qualification and PPAP.  When establishing or validating the assembly process, IC testing confirms that the combination of flux type, soldering process, and cleaning or no-clean process produces ionic contamination levels within the OEM-specified limit. This data is typically submitted as part of the production part approval process (PPAP) package. Production monitoring.  Periodic IC testing of production samples provides ongoing process monitoring data, confirming that contamination levels remain within the qualified range as production continues. Where periodic testing identifies a drift toward the specification limit, it triggers investigation before the limit is exceeded and before affected assemblies reach the customer. Failure investigation.  When a field return or qualification test failure involves corrosion, leakage current, or intermittent electrical behaviour, IC testing of the affected assembly is typically the first analytical step in characterising the ionic contamination profile. For a detailed explanation of how IC is used in PCB failure analysis, see our guide on ion chromatography for PCB failure analysis. Frequently Asked Questions What is an anion test for automotive PCBs?
An anion test is a common shorthand for ionic contamination testing by ion chromatography. It identifies and quantifies the anionic species (negatively charged ions) present on a PCB surface, including chloride, fluoride, bromide, sulfate, and other anions. A complete ionic contamination test also covers cations and weak organic acids. The method is defined in IPC-TM-650 2.3.28. Why is ionic contamination more of a concern in Malaysia than in Europe?  The higher average ambient humidity in Malaysia and Southeast Asia means that ionic residues on PCB surfaces are exposed to moisture activation more frequently and for longer periods than in temperate markets. Residues that remain inert in a dry European environment can become electrochemically active and drive corrosion or dendritic growth in the Malaysian climate. Automotive OEMs with Southeast Asian market programmes sometimes specify tighter ionic contamination limits to account for this. Does conformal coating eliminate the need for ionic contamination testing?  No. Conformal coating provides a barrier against direct moisture contact but does not remove ionic residues from the board surface. Ionic species trapped beneath conformal coating can still activate over time as moisture migrates through the coating. Most OEM specifications require ionic contamination limits to be met before conformal coating is applied. What ionic species are most significant for automotive PCBs in tropical climates?  Chloride is the most significant anion due to its aggressive corrosion behaviour at low concentrations. Ammonium and weak organic acid species are significant because they indicate active no-clean flux residues that absorb moisture and promote leakage current, which is particularly problematic in high-humidity environments. A complete IC test covering anions, cations, and WOA provides the most relevant picture for tropical market applications. What is the difference between ROSE testing and ion chromatography? ROSE testing (IPC-TM-650 2.3.25) measures bulk ionic cleanliness by conductivity and reports total ionic contamination as an equivalent amount of sodium chloride. It does not identify which ionic species are present. Ion chromatography (IPC-TM-650 2.3.28) identifies and quantifies each individual ionic species. For automotive applications, especially in tropical climates, ion chromatography provides more diagnostic information because it distinguishes between benign residues and aggressive corrosion promoters such as chloride and ammonium. Next Steps See our full Chemical and Electronics Testing services including ionic contamination analysis Read our guide on PCB cleanliness testing and ion chromatography See our Technical Cleanliness Testing services for precision component cleanliness Contact our team for an ionic contamination testing quotation or technical discussion ISO/IEC 17025 Accredited Testing Where Applicable | Anion and Cation Analysis for Automotive Electronics | Chemical and Electronics Testing Malaysia
