Gravimetric vs Microscopic Particle Analysis

Gravimetric vs Microscopic Particle Analysis, Which Method Is Right for Your Application Gravimetric Analysis · Microscopic Particle Count · LPC · ISO 16232 · VDA 19 · Cleanliness Classification ISO/IEC 17025 Accredited Testing Where Applicable | Full Particle Analysis Capability | Technical Cleanliness Specialist Malaysia When a component is submitted for cleanliness testing under ISO 16232 or VDA 19, the test programme does not choose between gravimetric analysis and microscopic particle analysis. Both are required. But understanding what each method measures, why each exists, and what each one can and cannot tell you helps manufacturers in Malaysia and across Southeast Asia prepare better samples, interpret results more accurately, and make better decisions when a component is close to its specification limit. What Is Gravimetric Analysis Gravimetric analysis is the measurement of total particle mass collected from a component surface during cleanliness testing. After particles are extracted from the component using a validated extraction method and filtered onto a membrane, the membrane is dried and weighed on a calibrated analytical balance before and after filtration. The difference in mass is the gravimetric result, expressed in milligrams per defined surface area of the component, typically milligrams per 1,000 square centimetres. Gravimetric analysis gives a single number representing the total mass of all extracted contamination. It does not distinguish between one large particle and thousands of small ones of equivalent total mass. It does not identify particle types or measure individual particle sizes. What it provides is a fast, reproducible, and defensible measure of overall contamination load that can be compared directly against a gravimetric cleanliness limit where one is specified. Key Characteristics Fast and reproducible: results available within hours of filtration Integral measurement: cannot distinguish between one large particle and thousands of small ones of equivalent mass Minimum detectable mass: typically 1 mg under controlled conditions; 3 mg or more recommended under non-climate-controlled environments per VDA 19 and ISO 16232 guidance Expressed as: mg per component or mg per 1,000 cm² of wetted surface area What Is Microscopic Particle Analysis Microscopic particle analysis examines the particles collected on the filter membrane under a calibrated microscope, counting and measuring each particle individually and classifying it by type. The analysis produces a particle size distribution: how many particles were found in each defined size range, from the smallest detectable size up to particles larger than 1,000 micrometres. It also classifies each particle into one of the categories defined by ISO 16232 and VDA 19. Particle category Description Metallic shiny Highly reflective particles consistent with machined metal debris or wear particles Metallic non-shiny Oxide-coated or corroded metal particles Fibre Elongated particles with length-to-width ratio greater than ten Other non-metallic Rubber, polymer, ceramic, mineral debris   This classification matters because OEM cleanliness specifications often apply different limits to different particle types. A single metallic shiny particle above a critical size threshold is often treated as a non-conformance regardless of the total count, because metallic debris carries a higher risk of causing mechanical damage in precision assemblies. Automated vs Manual Classification Microscopic analysis can be performed manually by an operator viewing the filter membrane under an optical microscope, or by automated image analysis systems that capture and classify particles using software algorithms. Automated systems improve throughput and reduce operator variability, but manual review is still required for borderline cases and for confirming particle classification when the specification applies different limits to different particle types. How Gravimetric and Microscopic Analysis Compare Dimension Gravimetric Analysis Microscopic Particle Analysis What it measures Total mass of all extracted particles Individual particle count by size class and type Output mg per 1,000 cm² Particles per size class per 1,000 cm² Speed Fast Slower, especially for high particle counts Particle type information None Yes, by visual classification Size distribution None Full distribution across defined size classes Identifies single large particles No Yes Required by ISO 16232 and VDA 19 Yes Yes   The key limitation of gravimetric analysis is that it cannot identify a single oversized particle. A component could show a very low gravimetric result while still containing one metallic shiny particle large enough to jam a hydraulic valve or score a fuel injector. Microscopic analysis catches this scenario. The key limitation of microscopic analysis is that it does not capture particles smaller than the lower size threshold of the analysis, and the total contamination mass is not directly available from a particle count alone. Light Obscuration Particle Counting (LPC) and Its Role In addition to manual or automated microscopic analysis, ISO 16232 and VDA 19 include light obscuration particle counting (LPC) as the method used to generate the formal cleanliness classification. LPC re-suspends the extracted particles in a clean solvent and passes the suspension through a laser-based counting instrument, which counts and sizes each particle automatically as it passes through the measurement cell. LPC is faster and more statistically representative than manual microscopic counting for high particle counts, and it is the method that generates the Component Cleanliness Code (CCC) used in formal OEM reporting. For a detailed explanation of how LPC works and where it fits in the cleanliness testing workflow, see our guide on Liquid-Borne Particle Count testing. LPC vs Optical Microscopy LPC measures particle size based on the shadow cast by each particle as it passes through the laser beam, reporting an equivalent spherical diameter. Optical microscopy measures the actual two-dimensional dimensions of each particle on the filter membrane. For irregularly shaped particles, the two methods may report different sizes for the same particle. LPC is the method that generates the Component Cleanliness Code (CCC) for formal reporting under ISO 16232-10, while optical microscopy provides particle type classification that LPC cannot deliver. When Both Methods Are Needed Together Under ISO 16232 and VDA 19, gravimetric analysis and microscopic particle analysis (including LPC) are not alternatives. They are complementary and both are required as part of a complete cleanliness test. Gravimetric analysis provides the overall contamination mass, which is compared against the gravimetric limit where one is specified. Microscopic analysis and LPC provide the size distribution and type classification, which are compared against the size-class particle count limits defined in the OEM specification. A component that passes the gravimetric limit may still fail the particle count limit in a specific size class, and vice versa. A complete cleanliness test result requires both. For automotive suppliers in Malaysia and Southeast Asia submitting components for OEM qualification, the test report must include both gravimetric and particle count results in the format required by the applicable standard, whether ISO 16232 or VDA 19, and formatted to the specific OEM reporting template where one is defined. Reporting Format Under ISO 16232-10, the complete test result includes the gravimetric residue weight (mg), the particle count distribution by size class (particles per 1,000 cm²), and the Component Cleanliness Code (CCC) derived from the LPC data. The CCC is written as a sequence of alphanumerical pairs enclosed in parentheses and separated by slashes, specifying the contamination level for each size class. VDA 19 uses a similar reporting structure with minor differences in notation. Practical Guidance for Manufacturers in Malaysia Automotive component manufacturers in Malaysia working with Japanese, European, or American OEM supply chains frequently encounter cleanliness requirements referencing ISO 16232 or VDA 19. Understanding how these two measurement methods work helps in several practical ways. When a component is close to its particle count limit in a specific size class

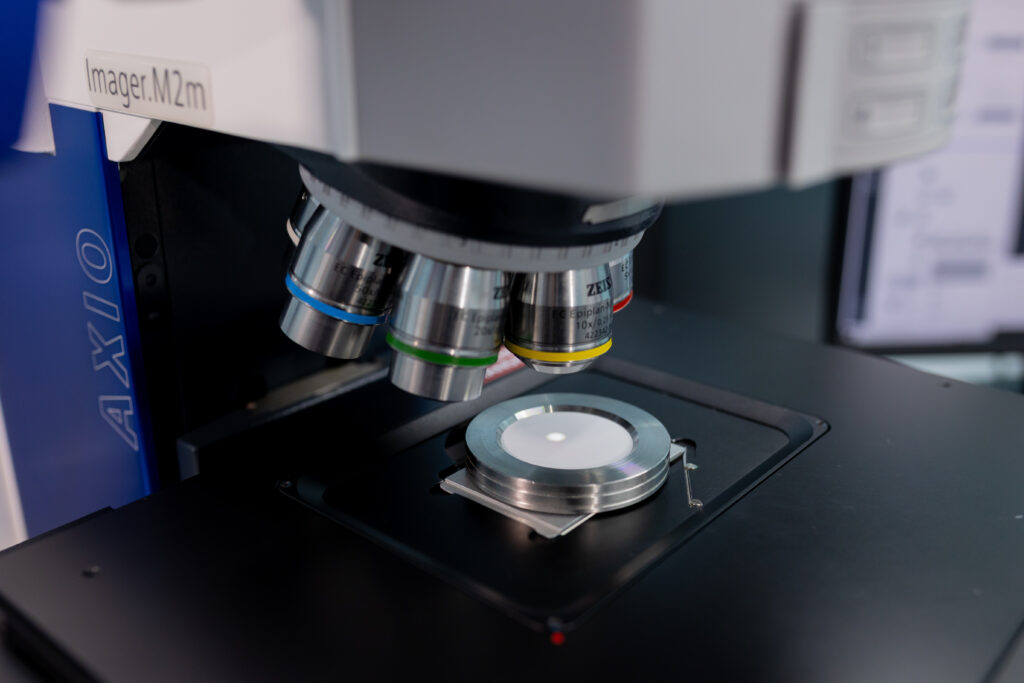

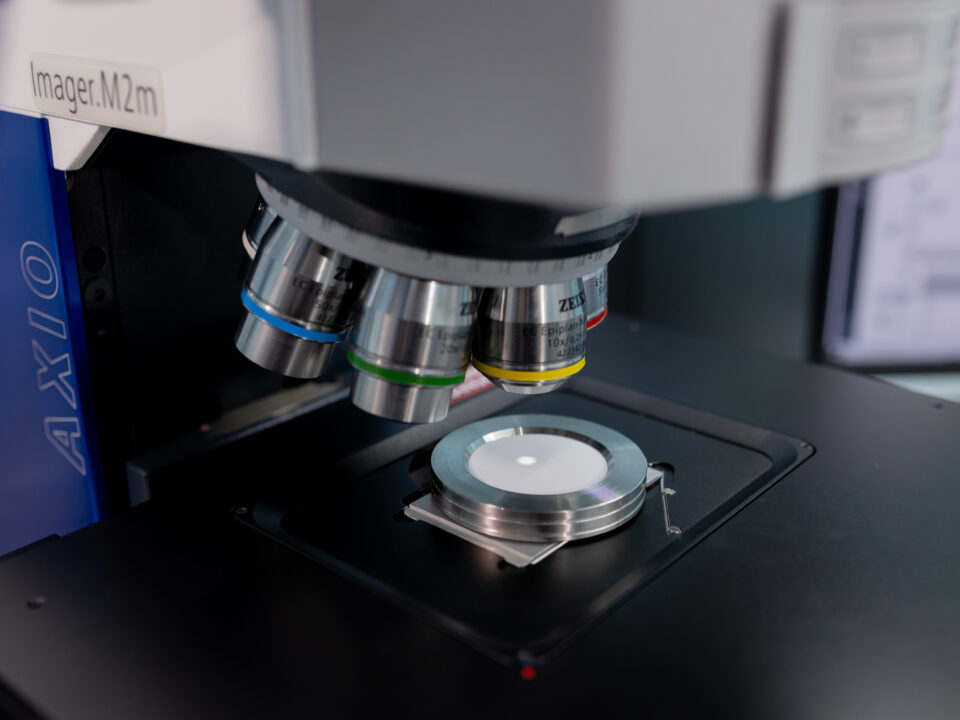

The microscopic classification results often provide clues about the contamination source. A high count of metallic shiny particles in the 50 to 100 micrometre size class is more likely to point toward a machining or grinding process than toward packaging or handling. When gravimetric results are inconsistent with particle counts
Investigate the particle size distribution and morphology. A high gravimetric result with low particle counts may indicate a large mass of very fine particles below the LPC lower size threshold, or soluble residues that contribute to mass but not to particle count. A low gravimetric result with high particle counts suggests many small particles with low individual mass. When a component shows an elevated gravimetric result but passes all particle count limits
The discrepancy may indicate particles that dissolve partially into the extraction solvent and contribute to the gravimetric mass without appearing in the microscopic count. This scenario has different implications for corrective action than a high particle count with low gravimetric mass. Frequently Asked Questions What is the difference between gravimetric analysis and particle counting in cleanliness testing?  Gravimetric analysis measures the total mass of all extracted particles. Particle counting measures the number of individual particles in each size class. Both are required under ISO 16232 and VDA 19 and answer different questions about the same contamination. Can gravimetric analysis alone determine whether a component passes its cleanliness specification?  Not in most cases. Most OEM cleanliness specifications define both a gravimetric limit and particle count limits by size class. A component must meet both to pass. Gravimetric analysis alone cannot confirm compliance with the particle count limits. What is particle size analysis in the context of automotive cleanliness testing?  Particle size analysis refers to the process of counting and sizing individual particles extracted from a component, producing a size distribution that shows how many particles were found in each defined size range. In automotive cleanliness testing, this is performed by automated microscopic analysis or LPC and is the basis for the cleanliness classification reported in the test result. Is accredited testing required for OEM cleanliness submissions in Malaysia?  For formal OEM qualification and supply chain submissions, test results are typically required from a laboratory accredited to ISO/IEC 17025 by an ILAC MRA recognised accreditation body. ALS Testing in Malaysia provides cleanliness testing under ISO/IEC 17025 accreditation. Confirm the specific accreditation requirement with your OEM or customer before submitting. What is the minimum gravimetric residue that can be reliably measured? Under climate-controlled laboratory conditions, gravimetric analysis can reliably detect residue masses down to approximately 1 mg. VDA 19 and ISO 16232 guidance recommends a minimum of 3 mg for non-climate-controlled environments to account for environmental variability. For components with very low expected contamination, the gravimetric result may be reported as “below detection limit” or “< 1 mg” depending on the laboratory’s balance sensitivity and environmental controls. Next Steps See our full Technical Cleanliness Testing services for ISO 16232 and VDA 19 Read our guide on particle analysis methods, standards and applications Read our guide on Liquid-Borne Particle Count testing Contact our team for a cleanliness testing quotation or technical discussion ISO/IEC 17025 Accredited Testing Where Applicable | Gravimetric and Microscopic Particle Analysis | Technical Cleanliness Testing Malaysia
