September 15, 2023GAS CHROMATROGRAPHY-MASS SPECTROMETRY (GC-MS)
Agilent 5977B InertPlus MSD Turbo EI with UNITY-xr thermal desorption unit.
Agilent GC 8890/MSD 5977B Turbo EI System
GC-MS is ideally suited to the analysis of many small molecular weight organic compounds. These include; amino acids, organic acids, fatty acids, volatile & semi-volatile organics, and petrochemicals/ hydrocarbons. The ALS laboratory in Pathumthani is currently using this instrument for:
- identifying and quantifying volatile organic compounds
- outgassing studies
- testing for residual solvents
- evaluating extracts from plastics
- evaluating contaminants on semiconductor wafers (thermal desorption)
- Able to identify and quantify VOC in environment (cleanroom or semiconductor shop floor) by air sampling tube

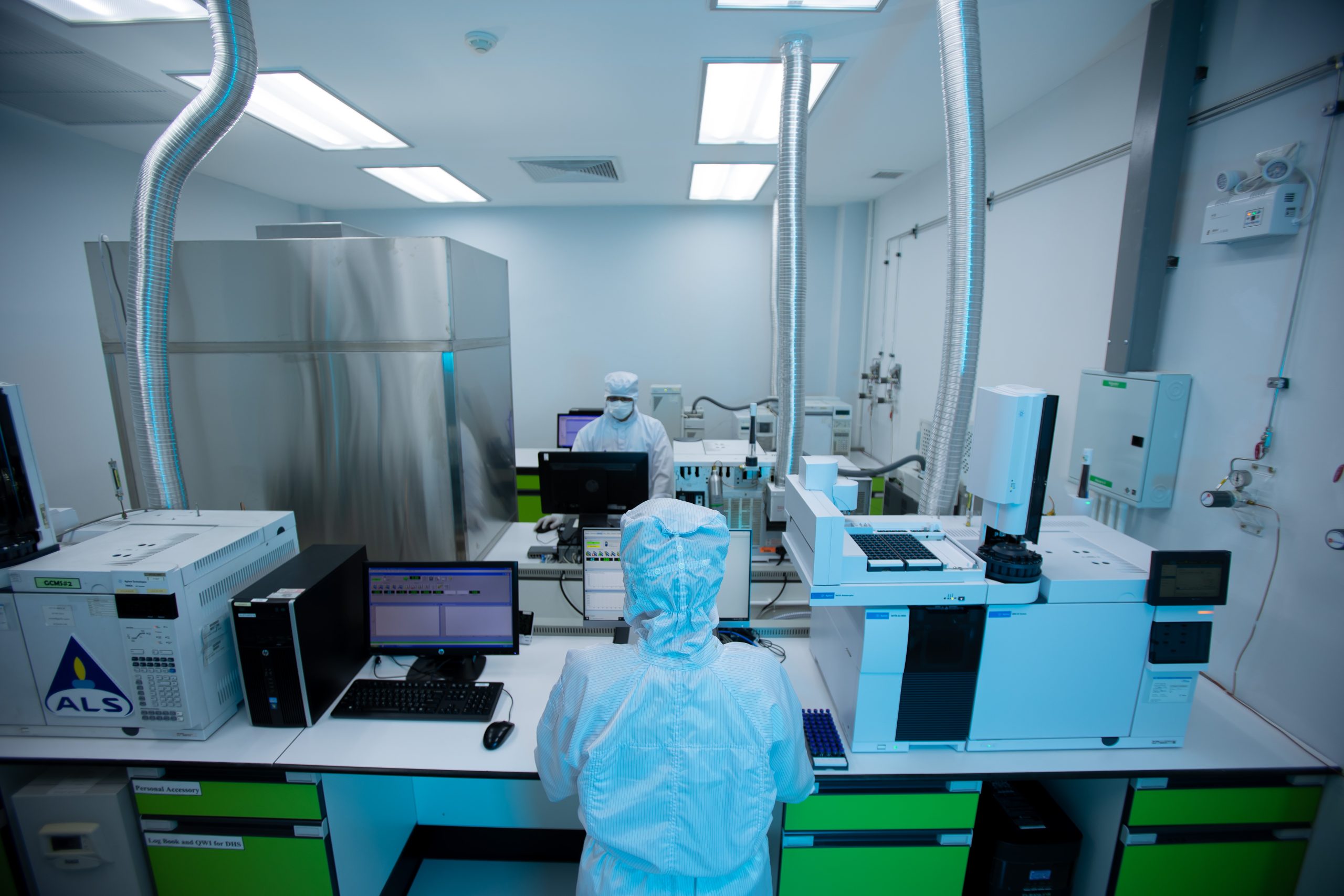

We have two dedicated GC-MS instruments with headspace and liquid autosamplers:
Key Features
- Equipped with Marke’s Unity with Ultra MFC (mass flow controller)

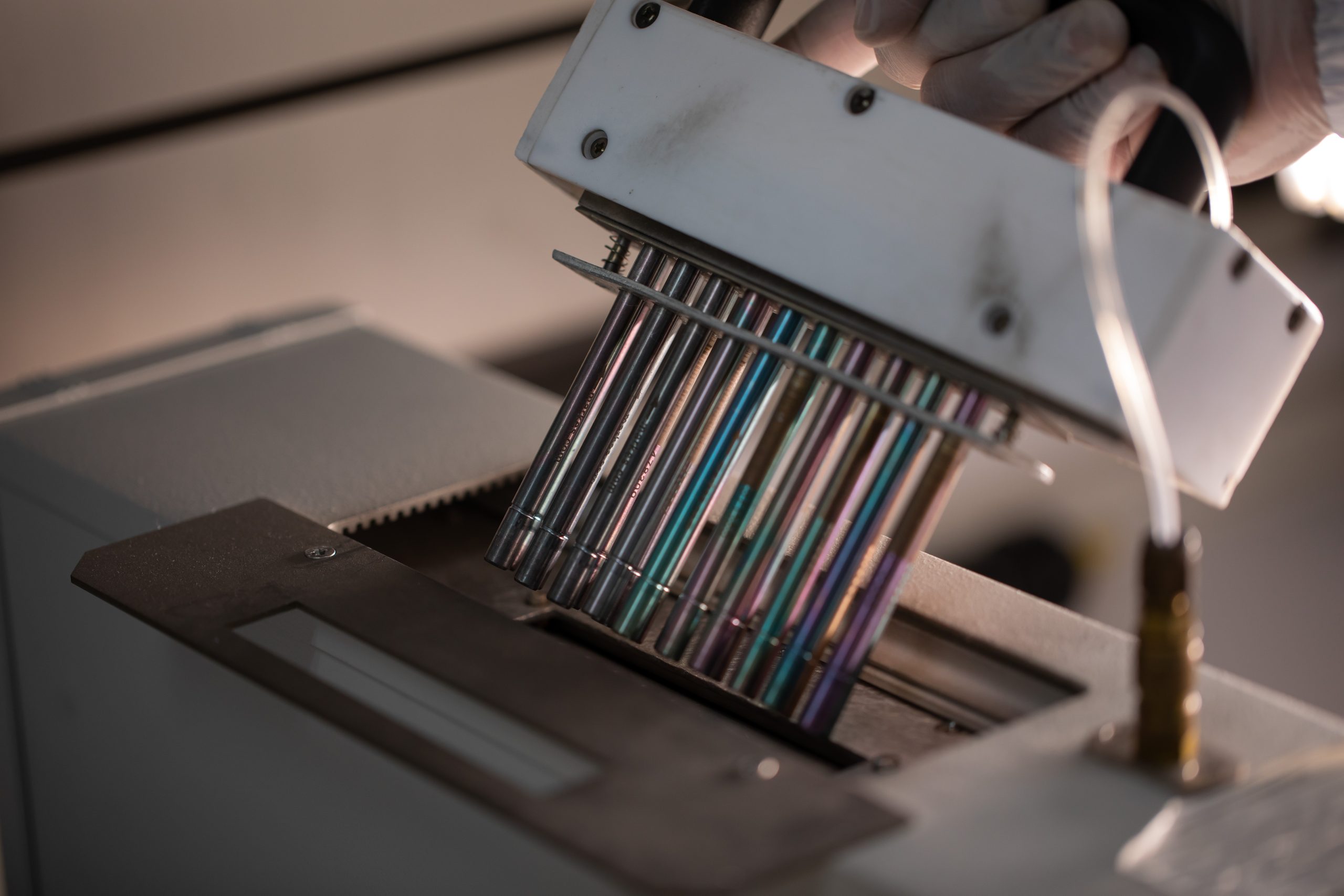

- Simultaneous sample tube loading

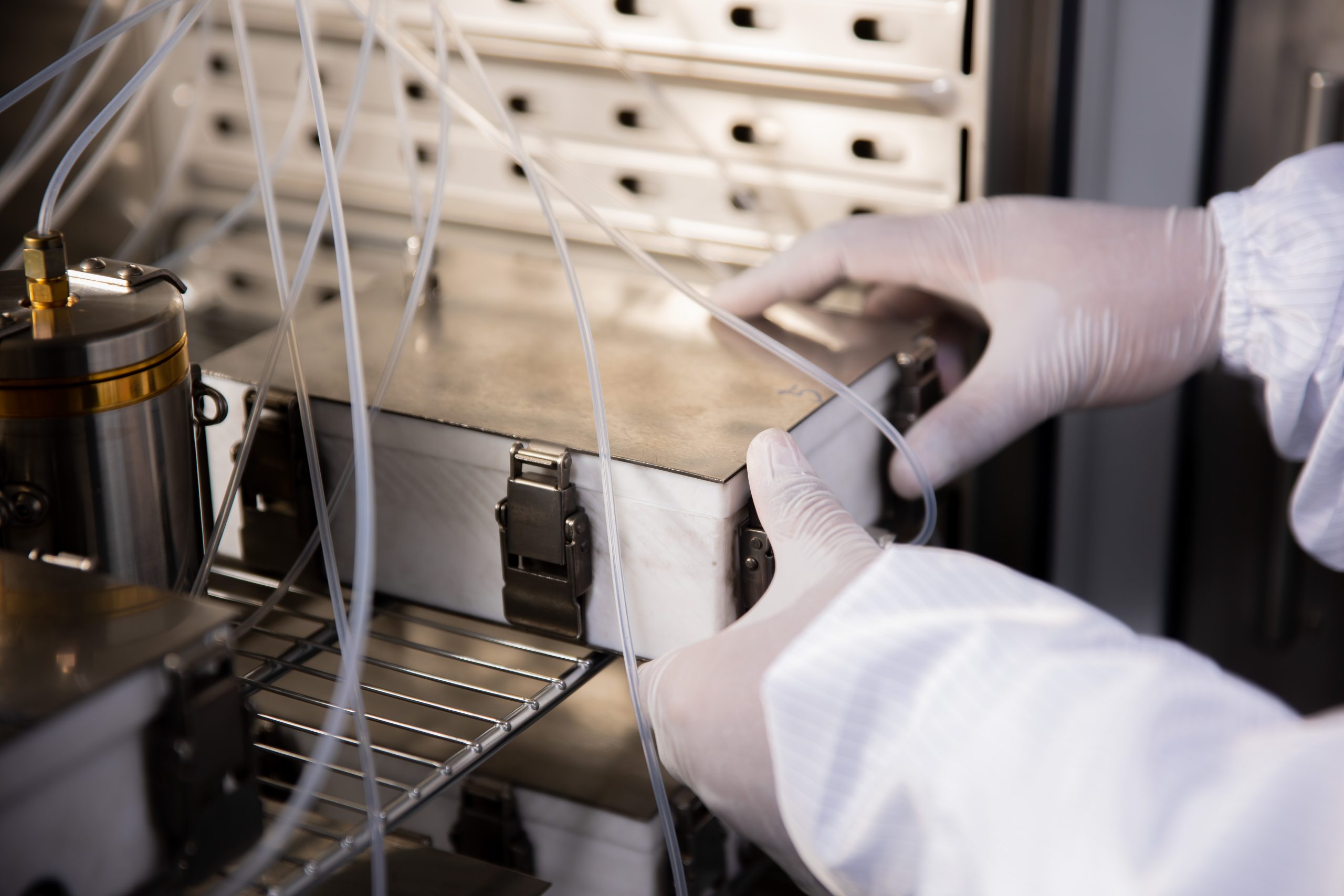

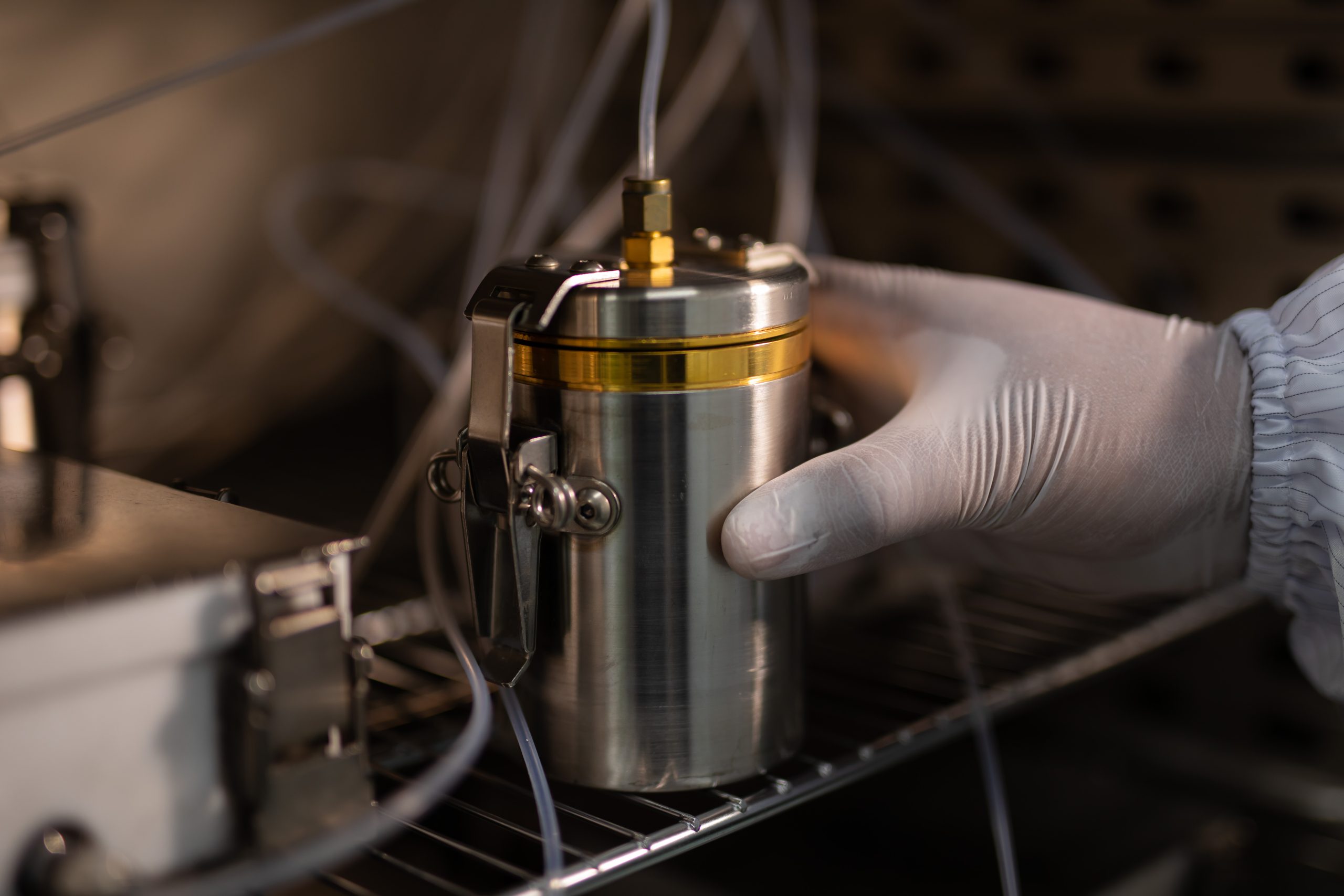

- Sample preparation in closed system (Teflon chambers in Binder force flow oven), minimizing leak and cross contamination
- Enables reliable, leak-free in-oven connections
- Equipped with Autosampler offers the faster injection time
- Capable of analyzing minute amounts of organic contaminants
- Precise and reproducible
Services
To analyze trace amounts of volatile and semi volatile organic compounds
- Semi volatile organic compounds: Organic residues have the potential to cause various problems including bad contact and corrosion. This analysis detects and identifies organic contaminants such as hydrocarbon or oil residue on casting and stamping alloy parts, flux residues, and adhesives.
- Volatile organic compounds: When coupled with a Static or Dynamic Headspace setup, it is an excellent tool for analyzing potentially detrimental organic substances that outgas from polymers or adhesives at higher operating temperature.
