กันยายน 18, 2023Motorized Optical Microscope for Automated Particle Analysis ISO16232/ VDA19

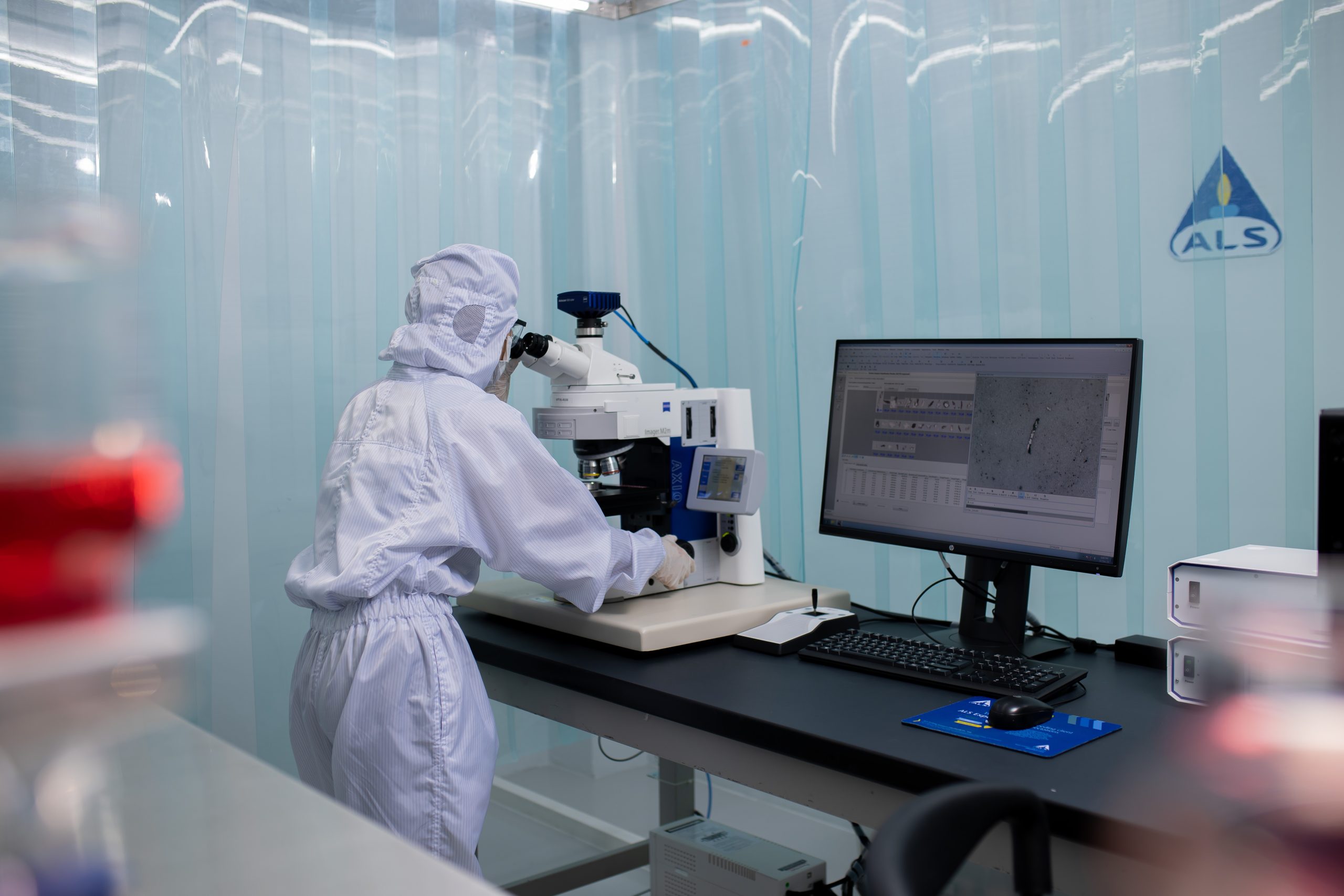

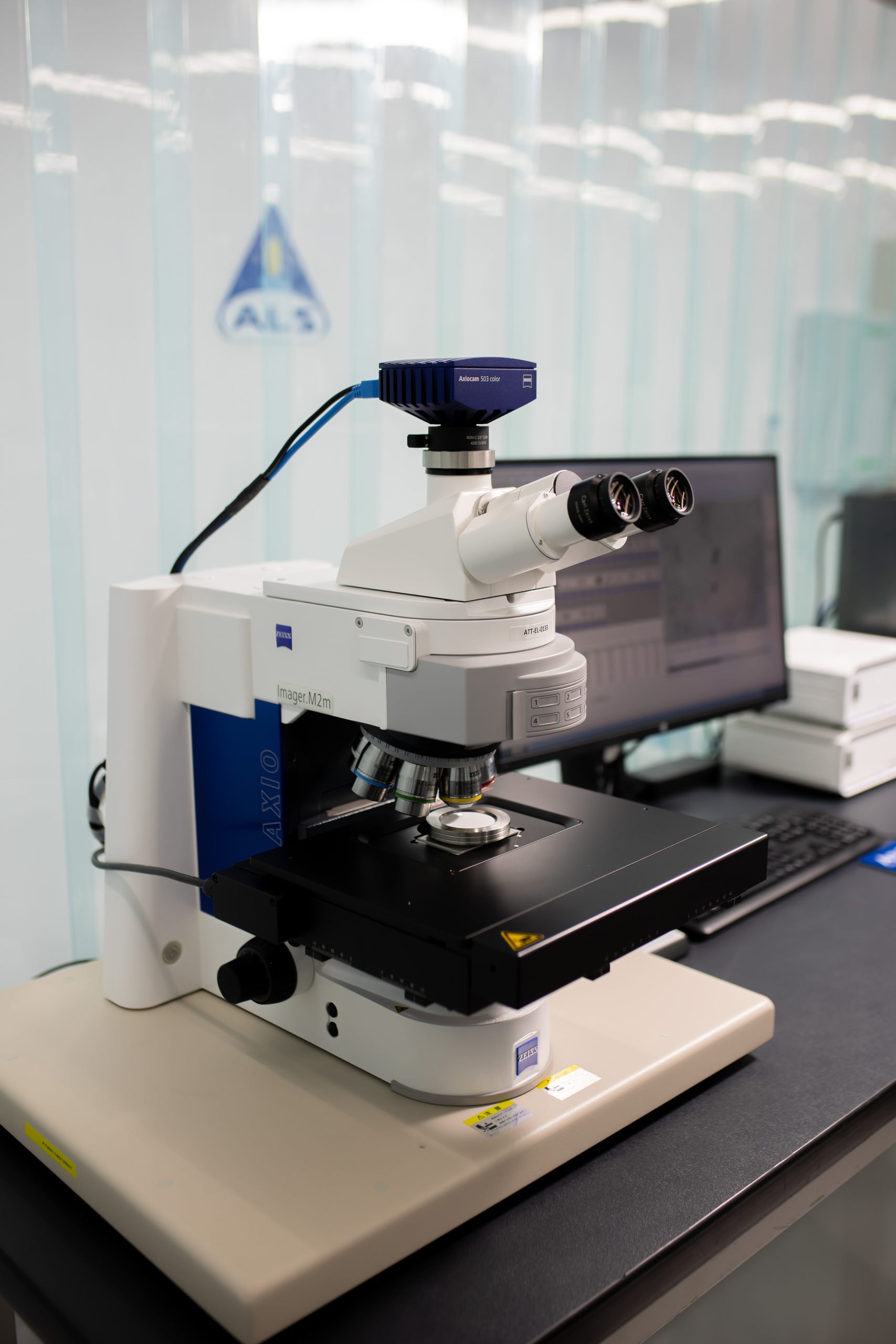

ZEISS Axio Imager M2m + Particle Analyzer Systems
Particle contamination monitoring is a critical quality control measure for components across many industries, including the automotive industry. Particulate contamination quality control has flow on impacts to product functionality and reliability. To help define cleanliness improvement opportunities, the quantitative and qualitative detection of particulate contamination is an important key.
ALS can help clients measure the relevant particulate contamination originating from the manufacturing process and production environment. Our Particle Analyzer supports ISO 4406/07, ISO 16232 and VDA 19.1, and can additionally be customized to company in house standards
Key Features:
- Fully automated microscope with a digital color camera and image analysis software
- Fast analysis times for particle measurement.
- Measure particle down to 2µm
- Up to 1,000x magnification (50x, 100x, 200x, 500x and 1,000x)
- Fully correlative particle analysis with SEM/ EDX (the ALS SEM/ EDX instrument is a ZEISS Sigma HD VP model)
Services:
ALS Pathumthani can provide you particle analysis according to ISO 16232 by these steps:
- Developing the declining curve

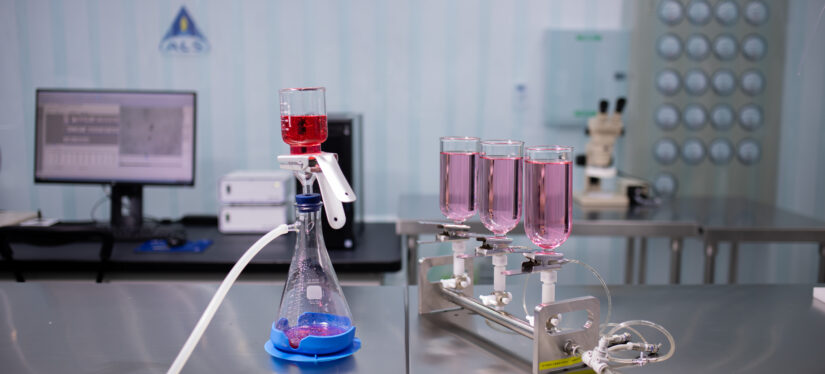

- Particle extraction – Agitation, rinsing or spraying (low, medium pressure) and sonication
- Particle analysis – Gravimetric (weighting), sizing and counting, characterization (metallic, non-metallic, and fiber), and nature determination (Fe base, SST, Brass, and others by SEM/EDX)
- Reporting Component Cleanliness Codes (CCC)
